XYCTF2024-ez unity

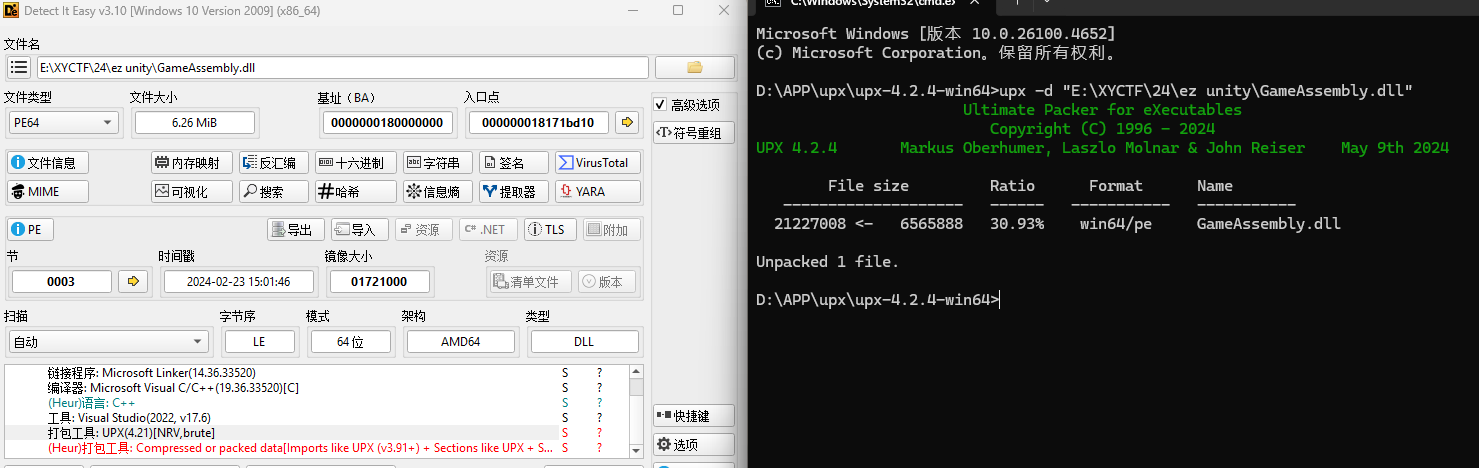

这个题是il2cpp打包的unity程序。但是打开后发现GameAssembly.dll加了UPX壳，这个无妨脱掉即可。

但是吧，如果这样去使用Il2CppDumper.exe工具的话会报错，并不能成功dump。

ERROR: Metadata file not found or encrypted.

报这样的错，要么是没有找到文件，要么是文件被加密了。很大的可能就是global-metadata.dat文件被加密了

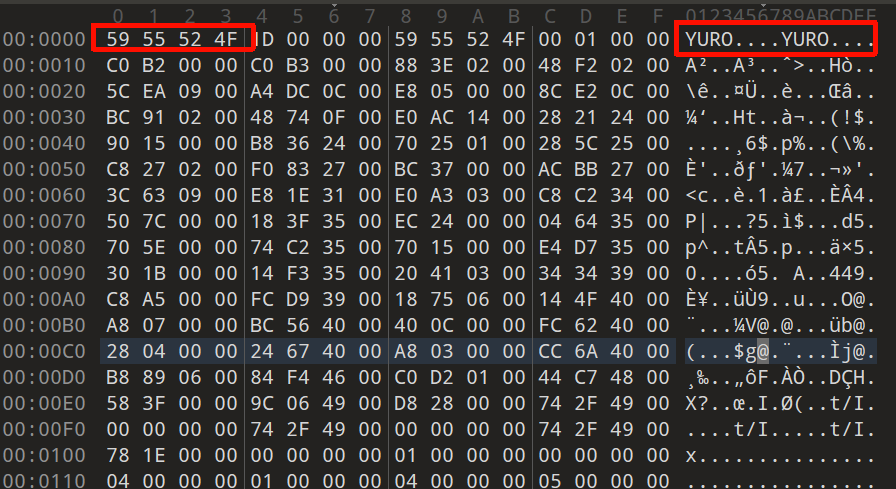

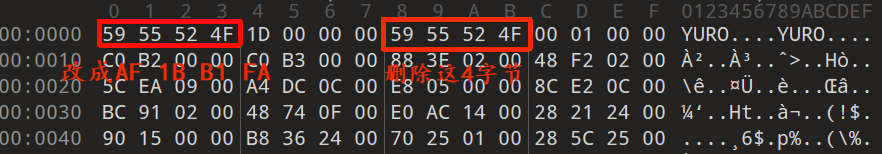

标准的global-metadata.dat文件有一个固定的文件头标识（Magic Bytes）AF 1B B1 FA （十六进制）。Il2CppDumper 在读取文件时，会首先检查这几个字节，如果不匹配就会直接抛出“被加密”的错误。

这里很明显不是标准的文件头，说明可能被加密了

思路：

1.动态 Dump：游戏能正常运行，说明内存里的数据是解密后的，可以用CE附加，从内存里搜索AF 1B B1 FA。把解密后的 metadata 内存块给 Dump 出来保存为 .dat 文件。

也可以去写一个frida脚本，思路也是去内存里找AF 1B B1 FA这个魔术头来定位文件在内存里的起始地址，然后再解析文件头去计算文件的大小，最后dump。

2.静态分析解密算法：

在libil2cpp.so里面有个il2cpp_init函数是加载函数调用链中的第一个函数，整个调用链是这样的

il2cpp_init
  -> il2cpp::vm::Runtime::Init
    -> il2cpp::vm::MetadataCache::Initialize
      -> il2cpp::vm::MetadataLoader::LoadMetadataFile

用ida加载GameAssembly.dll，去搜索字符串global-metadata.dat，这样可以找到MetadataCache::Initialize 或 MetadataLoader::LoadMetadataFile 函数，去分析加密算法，但是吧一般字符串global-metadata.dat会被加密，直接搜是搜不到的。

所以可以看这个调用链，去搜索il2cpp_init，然后接着去定位。

这里特别推荐阅读大佬的文章：https://cloud.tencent.com/developer/article/2216959

题目里提示到 il2cpp的源码是开源的，可以进行对照去看它的混淆

http://github.com/4ch12dy/il2cpp/blob/master/unity_2019_x/libil2cpp/il2cpp-api.cpp

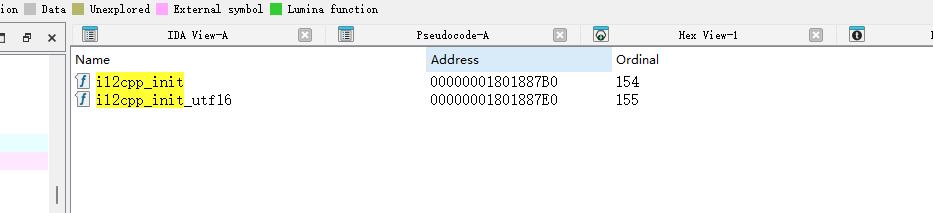

打开 ida ，在Exports里面去搜索il2cpp_init

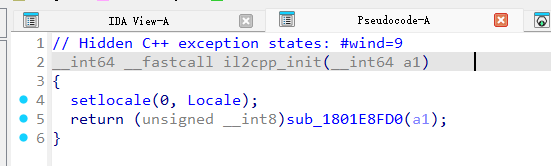

这个是对照源码的

int il2cpp_init(const char* domain_name)
{
    // Use environment's default locale
    setlocale(LC_ALL, "");

    return Runtime::Init(domain_name);
}

il2cpp_init 是IL2CPP运行时的初始化入口函数，它会调用 Runtime::Init(domain_name) 去真正初始化 IL2CPP 运行，并把初始化结果返回出去。

sub_1801E8FD0函数就是Runtime::Init

// Hidden C++ exception states: #wind=3
__int64 __fastcall sub_1801E8FD0(il2cpp_baselib *a1)
{
  __int64 CurrentThreadId; // rbx
  int v3; // edx
  int v4; // ecx
  unsigned __int8 v5; // bl
  __int64 v6; // rbx
  __int64 v7; // rdi
  __int64 v8; // rax
  __int64 method; // rax
  __int64 v10; // rax
  __int64 method_1; // rbx
  __int64 root_domain_0; // rsi
  __int64 v13; // rax
  __int64 v14; // rdi
  __int64 v15; // rbx
  __int64 field_from_name_0; // rbx
  __int64 v17; // rax
  void *MONO_REFLECTION_SERIALIZER_1; // rcx
  void *no__1; // rcx
  void *MONO_REFLECTION_SERIALIZER_2; // rcx
  void *no__2; // rcx
  __int64 v22; // rcx
  _QWORD *v23; // rax
  __int64 v24; // rcx
  __int64 v25; // rcx
  void *v26; // rcx
  __int128 MONO_REFLECTION_SERIALIZER; // [rsp+20h] [rbp-60h] BYREF
  __m128i v29; // [rsp+30h] [rbp-50h]
  _QWORD v30[2]; // [rsp+40h] [rbp-40h] BYREF
  __m128i v31; // [rsp+50h] [rbp-30h]
  __int128 no_; // [rsp+60h] [rbp-20h] BYREF
  __m128i si128; // [rsp+70h] [rbp-10h]
  _QWORD *v34; // [rsp+B8h] [rbp+38h] BYREF
  __int64 *v35; // [rsp+C0h] [rbp+40h]

  v35 = &qword_181333970;
  CurrentThreadId = il2cpp_baselib::Baselib_Thread_GetCurrentThreadId(a1);
  if ( CurrentThreadId == ::CurrentThreadId )
  {
    v3 = dword_1813339C0 + 1;
  }
  else
  {
    if ( _InterlockedExchangeAdd(&dword_181333978, 0xFFFFFFFF) <= 0 )
      il2cpp_baselib::Baselib_SystemSemaphore_Acquire(qword_181333970);
    ::CurrentThreadId = CurrentThreadId;
    v3 = 1;
  }
  dword_1813339C0 = v3;
  v4 = dword_181333908++;
  if ( v4 <= 0 )
  {
    sub_180218C50();
    sub_1801BC6A0();
    sub_18022B2E0();
    4_0 = (__int64)"4.0";
    sub_1801BC610();
    sub_1801A5E30();
    sub_180181960();
    psub_1800954F0();

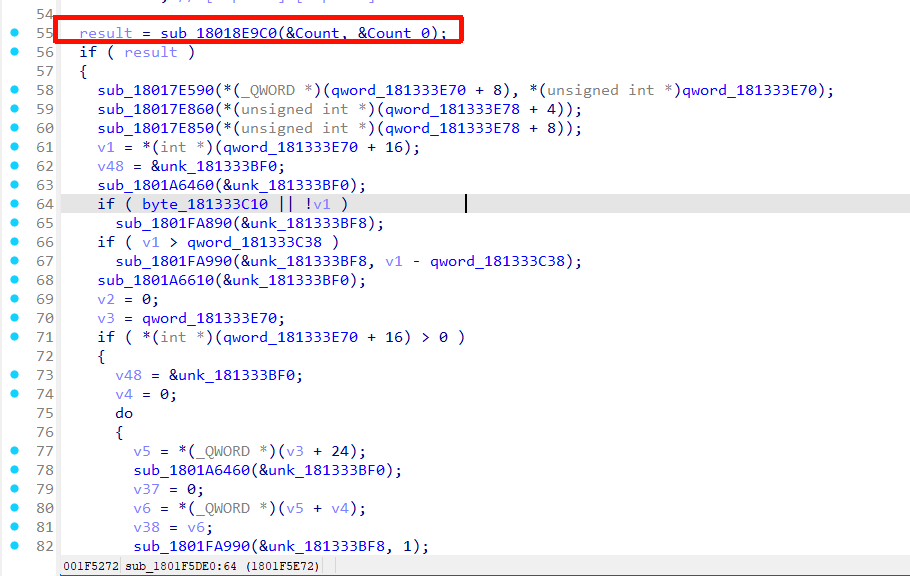

    if ( (unsigned __int8)sub_1801F5DE0() )
    {
      mono_thread_suspend_all_other_threads();
      sub_18020F220();
      sub_18018EC10();
      sub_1801D1070(j_j__malloc_base, j_free);
      memset(&::method, 0, 768u);
      v6 = sub_18021C4B0("mscorlib.dll");
      v7 = sub_18021C4B0("__Generated");
      ::method = jinfo_get_method(v6);
      method_0 = jinfo_get_method(v7);
      qword_1813335B0 = il2cpp_class_from_name_0(::method, "System", "Object");
      qword_1813335C0 = il2cpp_class_from_name_0(::method, "System", "Void");
      qword_1813335C8 = il2cpp_class_from_name_0(::method, "System", "Boolean");
      qword_1813335B8 = il2cpp_class_from_name_0(::method, "System", "Byte");
      qword_1813335D0 = il2cpp_class_from_name_0(::method, "System", "SByte");
      qword_1813335D8 = il2cpp_class_from_name_0(::method, "System", "Int16");
      qword_1813335E0 = il2cpp_class_from_name_0(::method, "System", "UInt16");
      qword_1813335E8 = il2cpp_class_from_name_0(::method, "System", "Int32");
      qword_1813335F0 = il2cpp_class_from_name_0(::method, "System", "UInt32");
      qword_181333600 = il2cpp_class_from_name_0(::method, "System", "UIntPtr");
      qword_1813335F8 = il2cpp_class_from_name_0(::method, "System", "IntPtr");
      qword_181333608 = il2cpp_class_from_name_0(::method, "System", "Int64");
      qword_181333610 = il2cpp_class_from_name_0(::method, "System", "UInt64");
      qword_181333618 = il2cpp_class_from_name_0(::method, "System", "Single");
      qword_181333620 = il2cpp_class_from_name_0(::method, "System", "Double");
      qword_181333628 = il2cpp_class_from_name_0(::method, "System", "Char");
      qword_181333630 = il2cpp_class_from_name_0(::method, "System", "String");
      qword_181333638 = il2cpp_class_from_name_0(::method, "System", "Enum");
      qword_181333640 = il2cpp_class_from_name_0(::method, "System", "Array");
      qword_1813337F0 = il2cpp_class_from_name_0(::method, "System", "ValueType");
      qword_181333648 = il2cpp_class_from_name_0(::method, "System", "Delegate");
      qword_181333650 = il2cpp_class_from_name_0(::method, "System", "MulticastDelegate");
      qword_181333658 = il2cpp_class_from_name_0(::method, "System.Runtime.Remoting.Messaging", "AsyncResult");
      qword_181333788 = il2cpp_class_from_name_0(::method, "System", "MonoAsyncCall");
      qword_181333660 = il2cpp_class_from_name_0(::method, "System.Threading", "ManualResetEvent");
      qword_181333680 = il2cpp_class_from_name_0(::method, "System", "Type");
      qword_181333688 = il2cpp_class_from_name_0(::method, "System", "MonoType");
      qword_1813336A0 = il2cpp_class_from_name_0(::method, "System.Threading", "Thread");
      qword_1813336A8 = il2cpp_class_from_name_0(::method, "System.Threading", "InternalThread");
      qword_181333740 = il2cpp_class_from_name_0(::method, "System", "RuntimeType");
      qword_1813336B0 = il2cpp_class_from_name_0(::method, "System", "AppDomain");
      qword_1813336B8 = il2cpp_class_from_name_0(::method, "System", "AppDomainSetup");
      qword_1813336C0 = il2cpp_class_from_name_0(::method, "System.Reflection", "MemberInfo");
      qword_1813336C8 = il2cpp_class_from_name_0(::method, "System.Reflection", "FieldInfo");
      qword_1813336D0 = il2cpp_class_from_name_0(::method, "System.Reflection", "MethodInfo");
      qword_1813336D8 = il2cpp_class_from_name_0(::method, "System.Reflection", "PropertyInfo");
      qword_1813336E0 = il2cpp_class_from_name_0(::method, "System.Reflection", "EventInfo");
      qword_1813336E8 = il2cpp_class_from_name_0(::method, "System.Text", "StringBuilder");
      qword_1813336F0 = il2cpp_class_from_name_0(::method, "System.Diagnostics", "StackFrame");
      qword_1813336F8 = il2cpp_class_from_name_0(::method, "System.Diagnostics", "StackTrace");
      qword_181333708 = il2cpp_class_from_name_0(::method, "System", "TypedReference");
      qword_181333718 = il2cpp_class_from_name_0(::method, "System.Collections.Generic", "IList`1");
      qword_181333720 = il2cpp_class_from_name_0(::method, "System.Collections.Generic", "ICollection`1");
      qword_181333728 = il2cpp_class_from_name_0(::method, "System.Collections.Generic", "IEnumerable`1");
      qword_181333730 = il2cpp_class_from_name_0(::method, "System.Collections.Generic", "IReadOnlyList`1");
      qword_181333738 = il2cpp_class_from_name_0(::method, "System.Collections.Generic", "IReadOnlyCollection`1");
      qword_181333748 = il2cpp_class_from_name_0(::method, "System", "Nullable`1");
      qword_181333778 = il2cpp_class_from_name_0(::method, "System", "Version");
      qword_181333780 = il2cpp_class_from_name_0(::method, "System.Globalization", "CultureInfo");
      qword_181333790 = il2cpp_class_from_name_0(::method, "System.Reflection", "RuntimeAssembly");
      qword_181333798 = il2cpp_class_from_name_0(::method, "System.Reflection", "AssemblyName");
      qword_1813337A0 = il2cpp_class_from_name_0(::method, "System.Reflection", "RuntimeParameterInfo");
      qword_1813337A8 = il2cpp_class_from_name_0(::method, "System.Reflection", "RuntimeModule");
      qword_181333690 = il2cpp_class_from_name_0(::method, "System", "Exception");
      qword_1813337B0 = il2cpp_class_from_name_0(::method, "System", "SystemException");
      qword_1813337B8 = il2cpp_class_from_name_0(::method, "System", "ArgumentException");
      qword_181333710 = il2cpp_class_from_name_0(::method, "System", "MarshalByRefObject");
      qword_181333750 = il2cpp_class_from_name_0(method_0, "System", "__Il2CppComObject");
      qword_1813337C8 = il2cpp_class_from_name_0(::method, "System.Runtime.InteropServices", "SafeHandle");
      qword_1813337D0 = il2cpp_class_from_name_0(::method, "System.Globalization", "SortKey");
      qword_1813337D8 = il2cpp_class_from_name_0(::method, "System", "DBNull");
      qword_1813337E0 = il2cpp_class_from_name_0(::method, "System.Runtime.InteropServices", "ErrorWrapper");
      qword_1813337E8 = il2cpp_class_from_name_0(::method, "System.Reflection", "Missing");
      qword_181333758 = il2cpp_class_from_name_0(::method, "System", "Attribute");
      qword_181333760 = il2cpp_class_from_name_0(::method, "System.Reflection", "CustomAttributeData");
      qword_181333768 = il2cpp_class_from_name_0(::method, "System.Reflection", "CustomAttributeTypedArgument");
      qword_181333770 = il2cpp_class_from_name_0(::method, "System.Reflection", "CustomAttributeNamedArgument");
      qword_181333828 = il2cpp_class_from_name_0(::method, "System.Collections.Generic", "KeyValuePair`2");
      qword_181333848 = il2cpp_class_from_name_0(::method, "System", "Guid");
      qword_1813337F8 = il2cpp_class_from_name_0(::method, "System.Threading", "_ThreadPoolWaitCallback");
      qword_181333808 = il2cpp_class_from_name_0(::method, "System.Runtime.Remoting.Messaging", "MonoMethodMessage");
      method_from_name = il2cpp_class_get_method_from_name_0(qword_1813337F8, "PerformWaitCallback", 0);
      qword_181333850 = il2cpp_class_from_name_0(::method, "System", "SByteEnum");
      qword_181333858 = il2cpp_class_from_name_0(::method, "System", "Int16Enum");
      qword_181333860 = il2cpp_class_from_name_0(::method, "System", "Int32Enum");
      qword_181333868 = il2cpp_class_from_name_0(::method, "System", "Int64Enum");
      qword_181333870 = il2cpp_class_from_name_0(::method, "System", "ByteEnum");
      qword_181333878 = il2cpp_class_from_name_0(::method, "System", "UInt16Enum");
      qword_181333880 = il2cpp_class_from_name_0(::method, "System", "UInt32Enum");
      qword_181333888 = il2cpp_class_from_name_0(::method, "System", "UInt64Enum");
      qword_181333890 = il2cpp_class_from_name_0(method_0, "Unity.IL2CPP.Metadata", "__Il2CppFullySharedGenericType");
      qword_181333898 = il2cpp_class_from_name_0(
                          method_0,
                          "Unity.IL2CPP.Metadata",
                          "__Il2CppFullySharedGenericStructType");
      mono_thread_suspend_all_other_threads();
      sub_18021BE10();
      sub_1801E1010(::method);
      v8 = sub_18021C4B0("System");
      if ( v8 )
      {
        method = jinfo_get_method(v8);
        qword_181333840 = il2cpp_class_from_name_0(method, "System", "Uri");
      }
      v10 = sub_18021C4B0("WindowsRuntimeMetadata");
      if ( v10 )
      {
        method_1 = jinfo_get_method(v10);
        qword_181333810 = il2cpp_class_from_name_0(method_1, "Windows.Foundation", "IReference`1");
        qword_181333818 = il2cpp_class_from_name_0(method_1, "Windows.Foundation", "IReferenceArray`1");
        qword_181333820 = il2cpp_class_from_name_0(method_1, "Windows.Foundation.Collections", "IKeyValuePair`2");
        qword_181333820 = il2cpp_class_from_name_0(method_1, "Windows.Foundation.Collections", "IKeyValuePair`2");
        qword_181333830 = il2cpp_class_from_name_0(method_1, "Windows.Foundation", "Uri");
        qword_181333838 = il2cpp_class_from_name_0(method_1, "Windows.Foundation", "IUriRuntimeClass");
      }
      sub_1801F57C0(qword_181333630);
      sub_1801B2160();
      root_domain_0 = mono_get_root_domain_0();
      v13 = mono_thread_attach_0(root_domain_0);
      sub_18018FE80(v13);
      v14 = sub_1801E5B00(qword_1813336B8);
      v15 = sub_1801E5B00(qword_1813336B0);
      sub_18020EB10(v15 + 24, root_domain_0);
      sub_18020EB10(root_domain_0, v15);
      sub_18020EB10(root_domain_0 + 8, v14);
      *(_DWORD *)(root_domain_0 + 40) = 1;
      *(_QWORD *)(root_domain_0 + 32) = sub_1801EC000(a1);
      sub_18018ED70();
      sub_18020F2E0();
      sub_1801F63E0();
      sub_180211A10(qword_181333630);
      sub_1801F57C0(qword_181333630);
      field_from_name_0 = il2cpp_class_get_field_from_name_0(qword_181333630, "Empty");
      v17 = sub_180211200();
      il2cpp_field_static_set_value_0(field_from_name_0, v17);
      byte_1813339C8 = 1;
      no_ = 0;
      si128 = _mm_load_si128((const __m128i *)&xmmword_181150060);
      LODWORD(no_) = 7562617;
      MONO_REFLECTION_SERIALIZER = 0;
      *(_QWORD *)&MONO_REFLECTION_SERIALIZER = operator new(0x20u);
      v29 = _mm_load_si128((const __m128i *)&xmmword_181150080);
      strcpy((char *)MONO_REFLECTION_SERIALIZER, "MONO_REFLECTION_SERIALIZER");
      sub_180181CE0(&MONO_REFLECTION_SERIALIZER, &no_);
      if ( v29.m128i_i64[1] > 0xFuLL )
      {
        MONO_REFLECTION_SERIALIZER_1 = (void *)MONO_REFLECTION_SERIALIZER;
        if ( (unsigned __int64)(v29.m128i_i64[1] + 1) >= 0x1000 )
        {
          if ( (unsigned __int64)(MONO_REFLECTION_SERIALIZER - *(_QWORD *)(MONO_REFLECTION_SERIALIZER - 8) - 8) > 0x1F )
            invalid_parameter_noinfo_noreturn();
          MONO_REFLECTION_SERIALIZER_1 = *(void **)(MONO_REFLECTION_SERIALIZER - 8);
        }
        j_j_free_0(MONO_REFLECTION_SERIALIZER_1);
      }
      v29 = _mm_load_si128(&xmmword_1810BCBF0);
      LOBYTE(MONO_REFLECTION_SERIALIZER) = 0;
      if ( si128.m128i_i64[1] > 0xFuLL )
      {
        no__1 = (void *)no_;
        if ( (unsigned __int64)(si128.m128i_i64[1] + 1) >= 0x1000 )
        {
          if ( (unsigned __int64)(no_ - *(_QWORD *)(no_ - 8) - 8) > 0x1F )
            invalid_parameter_noinfo_noreturn();
          no__1 = *(void **)(no_ - 8);
        }
        j_j_free_0(no__1);
      }
      no_ = 0;
      si128 = _mm_load_si128((const __m128i *)&xmmword_181150050);
      strcpy((char *)&no_, "no");
      MONO_REFLECTION_SERIALIZER = 0;
      v29 = 0;
      *(_QWORD *)&MONO_REFLECTION_SERIALIZER = operator new(0x20u);
      v29 = _mm_load_si128((const __m128i *)&xmmword_181150070);
      strcpy((char *)MONO_REFLECTION_SERIALIZER, "MONO_XMLSERIALIZER_THS");
      sub_180181CE0(&MONO_REFLECTION_SERIALIZER, &no_);
      if ( v29.m128i_i64[1] > 0xFuLL )
      {
        MONO_REFLECTION_SERIALIZER_2 = (void *)MONO_REFLECTION_SERIALIZER;
        if ( (unsigned __int64)(v29.m128i_i64[1] + 1) >= 0x1000 )
        {
          if ( (unsigned __int64)(MONO_REFLECTION_SERIALIZER - *(_QWORD *)(MONO_REFLECTION_SERIALIZER - 8) - 8) > 0x1F )
            invalid_parameter_noinfo_noreturn();
          MONO_REFLECTION_SERIALIZER_2 = *(void **)(MONO_REFLECTION_SERIALIZER - 8);
        }
        j_j_free_0(MONO_REFLECTION_SERIALIZER_2);
      }
      v29 = _mm_load_si128(&xmmword_1810BCBF0);
      LOBYTE(MONO_REFLECTION_SERIALIZER) = 0;
      if ( si128.m128i_i64[1] > 0xFuLL )
      {
        no__2 = (void *)no_;
        if ( (unsigned __int64)(si128.m128i_i64[1] + 1) >= 0x1000 )
        {
          if ( (unsigned __int64)(no_ - *(_QWORD *)(no_ - 8) - 8) > 0x1F )
            invalid_parameter_noinfo_noreturn();
          no__2 = *(void **)(no_ - 8);
        }
        j_j_free_0(no__2);
      }
      sub_18018BB40(root_domain_0);
      sub_18018BB90(*(_QWORD *)(root_domain_0 + 16));
      sub_1801BBFA0(v30);
      sub_1801EAFA0(v30);
      if ( !(unsigned int)sub_1801E7350() )
      {
        v23 = v30;
        if ( v31.m128i_i64[1] > 0xFuLL )
          v23 = (_QWORD *)v30[0];
        v34 = v23;
        sub_1801E7730(&v34, 1);
      }
      sub_1801F18A0(v22);
      sub_1801F1930(v24);
      sub_1801CA390(v25);
      v5 = 1;
      if ( v31.m128i_i64[1] > 0xFuLL )
      {
        v26 = (void *)v30[0];
        if ( (unsigned __int64)(v31.m128i_i64[1] + 1) >= 0x1000 )
        {
          if ( (unsigned __int64)(v30[0] - *(_QWORD *)(v30[0] - 8LL) - 8LL) > 0x1F )
            invalid_parameter_noinfo_noreturn();
          v26 = *(void **)(v30[0] - 8LL);
        }
        j_j_free_0(v26);
      }
      v31 = _mm_load_si128(&xmmword_1810BCBF0);
      LOBYTE(v30[0]) = 0;
    }
    else
    {
      --dword_181333908;
      v5 = 0;
    }
    v3 = dword_1813339C0;
  }
  else
  {
    v5 = 1;
  }
  if ( v3 > 0 )
  {
    if ( v3 == 1 )
    {
      ::CurrentThreadId = 0;
      dword_1813339C0 = 0;
      sub_1801A53E0(&qword_181333970);
    }
    else
    {
      dword_1813339C0 = v3 - 1;
    }
  }
  return v5;
}

挨个去看函数，看到sub_1801F5DE0() 函数时，其实就是il2cpp::vm::MetadataCache::Initialize函数

接着去看sub_18018E9C0函数

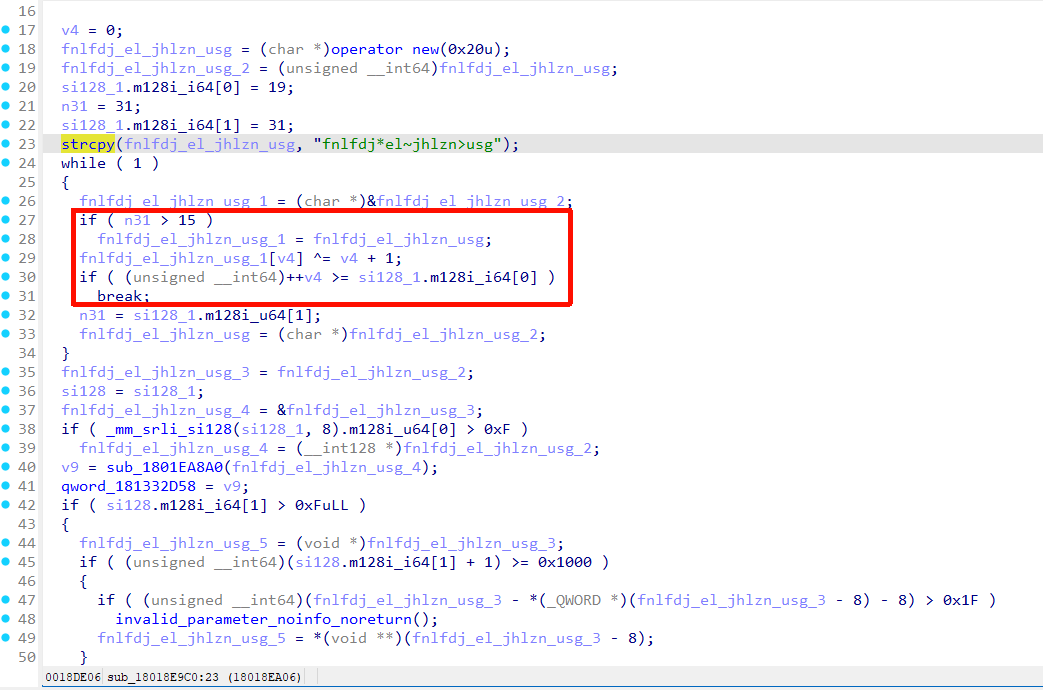

“fnlfdj*el~jhlzn>usg” 这个字符串就是被混淆的 global-metadata.dat

只是进行了简单的异或

str="fnlfdj*el~jhlzn>usg"
str1=''
for i in range(len(str)):
    str1+=chr(ord(str[i])^i+1)
print(str1)

#global-metadata.dat

这个函数是将这个被混淆的字符串通过异或解出来，然后调用一个函数去加载这个global-metadata.dat。加载global-metadata.dat的函数就是il2cpp::vm::MetadataLoader::LoadMetadataFile。

下面是源码 vm/MetadataCache.cpp 里的 il2cpp::vm::MetadataCache::Initialize()

bool il2cpp::vm::MetadataCache::Initialize()
{
    s_GlobalMetadata = vm::MetadataLoader::LoadMetadataFile("global-metadata.dat");
    if (!s_GlobalMetadata)
        return false;

    s_GlobalMetadataHeader = (const Il2CppGlobalMetadataHeader*)s_GlobalMetadata;
    IL2CPP_ASSERT(s_GlobalMetadataHeader->sanity == 0xFAB11BAF);
    IL2CPP_ASSERT(s_GlobalMetadataHeader->version == 24);

    // Pre-allocate these arrays so we don't need to lock when reading later.
    // These arrays hold the runtime metadata representation for metadata explicitly
    // referenced during conversion. There is a corresponding table of same size
    // in the converted metadata, giving a description of runtime metadata to construct.
    s_TypeInfoTable = (Il2CppClass**)IL2CPP_CALLOC(s_Il2CppMetadataRegistration->typesCount, sizeof(Il2CppClass*));
    s_TypeInfoDefinitionTable = (Il2CppClass**)IL2CPP_CALLOC(s_GlobalMetadataHeader->typeDefinitionsCount / sizeof(Il2CppTypeDefinition), sizeof(Il2CppClass*));
    s_MethodInfoDefinitionTable = (const MethodInfo**)IL2CPP_CALLOC(s_GlobalMetadataHeader->methodsCount / sizeof(Il2CppMethodDefinition), sizeof(MethodInfo*));
    s_GenericMethodTable = (const Il2CppGenericMethod**)IL2CPP_CALLOC(s_Il2CppMetadataRegistration->methodSpecsCount, sizeof(Il2CppGenericMethod*));
    s_ImagesCount = s_GlobalMetadataHeader->imagesCount / sizeof(Il2CppImageDefinition);
    s_ImagesTable = (Il2CppImage*)IL2CPP_CALLOC(s_ImagesCount, sizeof(Il2CppImage));
    s_AssembliesCount = s_GlobalMetadataHeader->assembliesCount / sizeof(Il2CppAssemblyDefinition);
    s_AssembliesTable = (Il2CppAssembly*)IL2CPP_CALLOC(s_AssembliesCount, sizeof(Il2CppAssembly));

    // setup all the Il2CppImages. There are not many and it avoid locks later on
    const Il2CppImageDefinition* imagesDefinitions = (const Il2CppImageDefinition*)((const char*)s_GlobalMetadata + s_GlobalMetadataHeader->imagesOffset);
    for (int32_t imageIndex = 0; imageIndex < s_ImagesCount; imageIndex++)
    {
        const Il2CppImageDefinition* imageDefinition = imagesDefinitions + imageIndex;
        Il2CppImage* image = s_ImagesTable + imageIndex;
        image->name = GetStringFromIndex(imageDefinition->nameIndex);

        std::string nameNoExt = il2cpp::utils::PathUtils::PathNoExtension(image->name);
        image->nameNoExt = (char*)IL2CPP_CALLOC(nameNoExt.size() + 1, sizeof(char));
        strcpy(const_cast<char*>(image->nameNoExt), nameNoExt.c_str());

        image->assembly = const_cast<Il2CppAssembly*>(GetAssemblyFromIndex(imageDefinition->assemblyIndex));
        image->typeStart = imageDefinition->typeStart;
        image->typeCount = imageDefinition->typeCount;
        image->exportedTypeStart = imageDefinition->exportedTypeStart;
        image->exportedTypeCount = imageDefinition->exportedTypeCount;
        image->entryPointIndex = imageDefinition->entryPointIndex;
        image->token = imageDefinition->token;
        image->customAttributeStart = imageDefinition->customAttributeStart;
        image->customAttributeCount = imageDefinition->customAttributeCount;
        for (uint32_t codeGenModuleIndex = 0; codeGenModuleIndex < s_Il2CppCodeRegistration->codeGenModulesCount; ++codeGenModuleIndex)
        {
            if (strcmp(image->name, s_Il2CppCodeRegistration->codeGenModules[codeGenModuleIndex]->moduleName) == 0)
                image->codeGenModule = s_Il2CppCodeRegistration->codeGenModules[codeGenModuleIndex];
        }
        IL2CPP_ASSERT(image->codeGenModule);
        image->dynamic = false;
    }

    // setup all the Il2CppAssemblies.
    const Il2CppAssemblyDefinition* assemblyDefinitions = (const Il2CppAssemblyDefinition*)((const char*)s_GlobalMetadata + s_GlobalMetadataHeader->assembliesOffset);
    for (int32_t assemblyIndex = 0; assemblyIndex < s_ImagesCount; assemblyIndex++)
    {
        const Il2CppAssemblyDefinition* assemblyDefinition = assemblyDefinitions + assemblyIndex;
        Il2CppAssembly* assembly = s_AssembliesTable + assemblyIndex;

        assembly->image = il2cpp::vm::MetadataCache::GetImageFromIndex(assemblyDefinition->imageIndex);
        assembly->token = assemblyDefinition->token;
        assembly->referencedAssemblyStart = assemblyDefinition->referencedAssemblyStart;
        assembly->referencedAssemblyCount = assemblyDefinition->referencedAssemblyCount;

        Il2CppAssemblyName* assemblyName = &assembly->aname;
        const Il2CppAssemblyNameDefinition* assemblyNameDefinition = &assemblyDefinition->aname;

        assemblyName->name = GetStringFromIndex(assemblyNameDefinition->nameIndex);
        assemblyName->culture = GetStringFromIndex(assemblyNameDefinition->cultureIndex);
        assemblyName->hash_value = GetStringFromIndex(assemblyNameDefinition->hashValueIndex);
        assemblyName->public_key = GetStringFromIndex(assemblyNameDefinition->publicKeyIndex);
        if (strcmp(assemblyName->public_key, "NULL") == 0)
            assemblyName->public_key = NULL;
        assemblyName->hash_alg = assemblyNameDefinition->hash_alg;
        assemblyName->hash_len = assemblyNameDefinition->hash_len;
        assemblyName->flags = assemblyNameDefinition->flags;
        assemblyName->major = assemblyNameDefinition->major;
        assemblyName->minor = assemblyNameDefinition->minor;
        assemblyName->build = assemblyNameDefinition->build;
        assemblyName->revision = assemblyNameDefinition->revision;
        memcpy(assemblyName->public_key_token, assemblyNameDefinition->public_key_token, sizeof(assemblyNameDefinition->public_key_token));

        il2cpp::vm::Assembly::Register(assembly);
    }

    InitializeUnresolvedSignatureTable();

这段源码的意思是调 LoadMetadataFile("global-metadata.dat") 去加载 metadata 文件，返回值放到 s_GlobalMetadata，接着就是校验metadata 文件是否合法，然后根据里面的内容，建立类型表、方法表、镜像表、程序集表，并把这些信息注册到IL2CPP运行里。

就是说如果遇到global-metadata.dat文件加密的话，最常见的情况就是MetadataCache::Initialize()调用到这条加载链里面，某一层会进行解密再返回，这个处理点经常在MetadataLoader::LoadMetadataFile()里面。

我们看到 v9 = sub_1801EA8A0(fnlfdj_el_jhlzn_usg_4);

跟进这个函数去看，发现这个函数其实就是我们要找的il2cpp::vm::MetadataLoader::LoadMetadataFile()。

这个看起来像“拼路径 + 打开文件 + 映射到内存”的通用 loader

// Hidden C++ exception states: #wind=6
__int64 __fastcall sub_1801EA8A0(__int64 a1)
{
  __int64 v2; // rdi
  void *v3; // rcx
  __int64 v4; // rax
  __int64 v5; // rax
  __int64 v6; // rsi
  const char *v7; // rdx
  __int64 v8; // rbx
  void *v9; // rcx
  void *v10; // rcx
  _QWORD v12[2]; // [rsp+50h] [rbp-9h] BYREF
  __m128i v13; // [rsp+60h] [rbp+7h]
  void *Src; // [rsp+70h] [rbp+17h] BYREF
  unsigned __int64 n0xF; // [rsp+88h] [rbp+2Fh]
  void *v16; // [rsp+90h] [rbp+37h] BYREF
  __m128i si128; // [rsp+A0h] [rbp+47h]
  int v18; // [rsp+C8h] [rbp+6Fh] BYREF

  v2 = 0;
  sub_1801D1090(&v16);
  sub_1801AFFC0(&Src);
  if ( si128.m128i_i64[1] > 0xFuLL )
  {
    v3 = v16;
    if ( (unsigned __int64)(si128.m128i_i64[1] + 1) >= 0x1000 )
    {
      if ( (unsigned __int64)v16 - *((_QWORD *)v16 - 1) - 8 > 0x1F )
        invalid_parameter_noinfo_noreturn();
      v3 = (void *)*((_QWORD *)v16 - 1);
    }
    j_j_free_0(v3);
  }
  si128 = _mm_load_si128(&xmmword_1810BCBF0);
  LOBYTE(v16) = 0;
  v4 = -1;
  do
    ++v4;
  while ( *(_BYTE *)(a1 + v4) );
  sub_1801AFFC0(v12);
  v18 = 0;
  v5 = sub_1801B1CB0(v12, 3, 1);
  v6 = v5;
  if ( v18 )
  {
    v7 = (const char *)v12;
    if ( v13.m128i_i64[1] > 0xFuLL )
      v7 = (const char *)v12[0];
    sub_1801DB530("ERROR: Could not open %s", v7);
  }
  else
  {
    v8 = sub_1801DAE10(v5);
    sub_1801B19C0(v6, &v18);
    if ( v18 )
      sub_1801DB330(v8);
    else
      v2 = v8;
  }
  if ( v13.m128i_i64[1] > 0xFuLL )
  {
    v9 = (void *)v12[0];
    if ( (unsigned __int64)(v13.m128i_i64[1] + 1) >= 0x1000 )
    {
      if ( (unsigned __int64)(v12[0] - *(_QWORD *)(v12[0] - 8LL) - 8LL) > 0x1F )
        invalid_parameter_noinfo_noreturn();
      v9 = *(void **)(v12[0] - 8LL);
    }
    j_j_free_0(v9);
  }
  v13 = _mm_load_si128(&xmmword_1810BCBF0);
  LOBYTE(v12[0]) = 0;
  if ( n0xF > 0xF )
  {
    v10 = Src;
    if ( n0xF + 1 >= 0x1000 )
    {
      if ( (unsigned __int64)Src - *((_QWORD *)Src - 1) - 8 > 0x1F )
        invalid_parameter_noinfo_noreturn();
      v10 = (void *)*((_QWORD *)Src - 1);
    }
    j_j_free_0(v10);
  }
  return v2;
}

v5 = sub_1801B1CB0(v12, 3, 1); 这里根据路径 v12 打开了文件，返回的 v5 是一个文件句柄（File Handle）或内存映射对象。

然后走进了 else 分支： v8 = sub_1801DAE10(v5); 引擎把打开的文件句柄 v5 扔给了这个新函数去处理。

sub_1801B19C0(v6, &v18); 处理完之后，关闭文件句柄（v6 就是前面的 v5）。

v2 = v8; return v2; 最后把处理好的内存数据返回给上层。

然后继续去跟进sub_1801DAE10，里面是调用了sub_1801DAE20。

// Hidden C++ exception states: #wind=6
char *__fastcall sub_1801DAE20(il2cpp_baselib *hFile, __int64 a2, __int64 a3, unsigned int n5)
{
  __int64 CurrentThreadId; // rdi
  int v8; // ebx
  HANDLE hObject; // r15
  char *v10; // rdi
  char *v11; // rax
  void *v12; // rsi
  _QWORD *v13; // rax
  _BYTE *v14; // rcx
  _QWORD *v15; // rax
  __int64 v16; // r14
  void *v17; // rsi
  _QWORD *v18; // rax
  _BYTE *v19; // rcx
  _QWORD *v20; // rax
  signed __int32 i; // edx
  signed __int32 i_1; // eax
  __int64 v23; // rdx
  __int64 a7; // [rsp+40h] [rbp-49h] BYREF
  __int128 v26; // [rsp+48h] [rbp-41h]
  __int64 v27; // [rsp+60h] [rbp-29h] BYREF
  DWORD a4[2]; // [rsp+68h] [rbp-21h] BYREF
  __int64 *v29; // [rsp+70h] [rbp-19h]
  void **v30; // [rsp+80h] [rbp-9h]
  __int64 v31; // [rsp+88h] [rbp-1h]
  __int128 v32; // [rsp+90h] [rbp+7h] BYREF
  void **v33; // [rsp+A0h] [rbp+17h]
  __int64 v34; // [rsp+A8h] [rbp+1Fh]
  __int128 v35; // [rsp+B0h] [rbp+27h] BYREF
  __int64 v36; // [rsp+F8h] [rbp+6Fh] BYREF

  v36 = a2;
  v29 = &qword_181333410;
  CurrentThreadId = il2cpp_baselib::Baselib_Thread_GetCurrentThreadId(hFile);
  v8 = 1;
  if ( CurrentThreadId == CurrentThreadId_1 )
  {
    ++dword_181333460;
  }
  else
  {
    if ( _InterlockedExchangeAdd(&::i, 0xFFFFFFFF) <= 0 )
      il2cpp_baselib::Baselib_SystemSemaphore_Acquire(qword_181333410);
    CurrentThreadId_1 = CurrentThreadId;
    dword_181333460 = 1;
  }
  *(_QWORD *)a4 = 0;
  LODWORD(a7) = 0;
  hObject = sub_1802183B0((__int64)hFile, 0, 0, a4, n5, 0, (int *)&a7);
  if ( (_DWORD)a7 )
  {
    v10 = 0;
    goto LABEL_30;
  }
  v27 = a3;
  v11 = (char *)sub_180218D30(hObject, &v36, a3, n5, &v27, (int *)&a7);
  v10 = v11;
  if ( v11 )
  {
    v10 = &v11[a3 - v27];
    if ( (unsigned __int8)sub_18006EE80(hObject) )
    {
      v12 = qword_181333478;
      v13 = (_QWORD *)*((_QWORD *)qword_181333478 + 1);
      *(_QWORD *)&v26 = v13;
      DWORD2(v26) = 0;
      v14 = qword_181333478;
      while ( !*((_BYTE *)v13 + 25) )
      {
        *(_QWORD *)&v26 = v13;
        if ( v13[4] >= (unsigned __int64)v10 )
        {
          DWORD2(v26) = 1;
          v14 = v13;
          v13 = (_QWORD *)*v13;
        }
        else
        {
          DWORD2(v26) = 0;
          v13 = (_QWORD *)v13[2];
        }
      }
      if ( v14[25] || (unsigned __int64)v10 < *((_QWORD *)v14 + 4) )
      {
        if ( qword_181333480 == 0x555555555555555LL )
          goto LABEL_44;
        v30 = &qword_181333478;
        v31 = 0;
        v15 = operator new(0x30u);
        v15[4] = v10;
        v15[5] = 0;
        *v15 = v12;
        v15[1] = v12;
        v15[2] = v12;
        *((_WORD *)v15 + 12) = 0;
        v32 = v26;
        v14 = (_BYTE *)sub_1801912E0(&qword_181333478, &v32, v15);
      }
      *((_QWORD *)v14 + 5) = hObject;
    }
    v16 = v36;
    v17 = qword_181333468;
    v18 = (_QWORD *)*((_QWORD *)qword_181333468 + 1);
    *(_QWORD *)&v26 = v18;
    DWORD2(v26) = 0;
    v19 = qword_181333468;
    while ( !*((_BYTE *)v18 + 25) )
    {
      *(_QWORD *)&v26 = v18;
      if ( v18[4] >= (unsigned __int64)v10 )
      {
        DWORD2(v26) = 1;
        v19 = v18;
        v18 = (_QWORD *)*v18;
      }
      else
      {
        DWORD2(v26) = 0;
        v18 = (_QWORD *)v18[2];
      }
    }
    if ( !v19[25] && (unsigned __int64)v10 >= *((_QWORD *)v19 + 4) )
      goto LABEL_29;
    if ( qword_181333470 != 0x555555555555555LL )
    {
      v33 = &qword_181333468;
      v34 = 0;
      v20 = operator new(0x30u);
      v20[4] = v10;
      v20[5] = 0;
      *v20 = v17;
      v20[1] = v17;
      v20[2] = v17;
      *((_WORD *)v20 + 12) = 0;
      v35 = v26;
      v19 = (_BYTE *)sub_1801912E0(&qword_181333468, &v35, v20);
LABEL_29:
      *((_QWORD *)v19 + 5) = v16;
      goto LABEL_30;
    }
LABEL_44:
    std::vector<void *>::_Xlen();
  }
LABEL_30:
  if ( dword_181333460 > 0 )
  {
    if ( dword_181333460 == 1 )
    {
      CurrentThreadId_1 = 0;
      dword_181333460 = 0;
      for ( i = ::i; i != i_0; i = i_1 )
      {
        if ( i + v8 > i_0 )
          v8 = i_0 - i;
        i_1 = _InterlockedCompareExchange(&::i, i + v8, i);
        if ( i == i_1 )
        {
          if ( i < 0 )
          {
            v23 = (unsigned int)-i;
            if ( v8 < (int)v23 )
              v23 = (unsigned int)v8;
            il2cpp_baselib::Baselib_SystemSemaphore_Release(qword_181333410, v23);
          }
          return v10;
        }
      }
    }
    else
    {
      --dword_181333460;
    }
  }
  return v10;
}

借助ai去分析，这个函数其实就是对 Windows 底层 MapViewOfFile（内存映射文件）的包装。它仅仅是把硬盘上的文件原封不动地搬到了内存里，并把内存指针返回给了上一层。这里面既没有解密逻辑，也没有文件头校验。

那说明这个其实没有加密，没有文件头校验说明并不会检查文件头是不是AF 1B B1 FA，所以之前frida或者用CE在内存里搜索是找不到的。那么这个直接将文件头改成标准的AF 1B B1 FA就可以了吗？

其实经过实操之后发现依旧不行。那就再回去看看

下面是vm/MetadataLoader.cpp里面的il2cpp::vm::MetadataLoader::LoadMetadataFile()

void* il2cpp::vm::MetadataLoader::LoadMetadataFile(const char* fileName)
{
    std::string resourcesDirectory = utils::PathUtils::Combine(utils::Runtime::GetDataDir(), utils::StringView<char>("Metadata"));

    std::string resourceFilePath = utils::PathUtils::Combine(resourcesDirectory, utils::StringView<char>(fileName, strlen(fileName)));

    int error = 0;
    os::FileHandle* handle = os::File::Open(resourceFilePath, kFileModeOpen, kFileAccessRead, kFileShareRead, kFileOptionsNone, &error);
    if (error != 0)
    {
        utils::Logging::Write("ERROR: Could not open %s", resourceFilePath.c_str());
        return NULL;
    }

    void* fileBuffer = utils::MemoryMappedFile::Map(handle);

    os::File::Close(handle, &error);
    if (error != 0)
    {
        utils::MemoryMappedFile::Unmap(fileBuffer);
        fileBuffer = NULL;
        return NULL;
    }

    return fileBuffer;
}

void il2cpp::vm::MetadataLoader::UnloadMetadataFile(void* fileBuffer)
{
    bool success = il2cpp::utils::MemoryMappedFile::Unmap(fileBuffer);
    NO_UNUSED_WARNING(success);
    IL2CPP_ASSERT(success);
}

这段源码里LoadMetadataFile 是负责把 metadata 文件打开并映射到内存里，然后返回这块内存地址。

UnloadMetadataFile 负责把这块映射取消。

在 C/C++ 程序里，去解析这个 global-metadata.dat 文件，是使用了结构体强转，引擎会把整个 .dat 文件原封不动地搬进内存，然后在它的“头部”套上一个 C++ 结构体（struct）。

官方的标准的结构体在vm/il2cpp-metadata.h文件里面

typedef struct Il2CppGlobalMetadataHeader
{
    int32_t sanity;			//偏移 0
    int32_t version;		//偏移 4
    int32_t stringLiteralOffset; // string data for managed code	偏移 8
    int32_t stringLiteralCount;
    int32_t stringLiteralDataOffset;
    int32_t stringLiteralDataCount;
    int32_t stringOffset; // string data for metadata
    int32_t stringCount;
    int32_t eventsOffset; // Il2CppEventDefinition
    int32_t eventsCount;
    int32_t propertiesOffset; // Il2CppPropertyDefinition
    int32_t propertiesCount;
    int32_t methodsOffset; // Il2CppMethodDefinition
    int32_t methodsCount;
    int32_t parameterDefaultValuesOffset; // Il2CppParameterDefaultValue
    int32_t parameterDefaultValuesCount;
    int32_t fieldDefaultValuesOffset; // Il2CppFieldDefaultValue
    int32_t fieldDefaultValuesCount;
    int32_t fieldAndParameterDefaultValueDataOffset; // uint8_t
    int32_t fieldAndParameterDefaultValueDataCount;
    int32_t fieldMarshaledSizesOffset; // Il2CppFieldMarshaledSize
    int32_t fieldMarshaledSizesCount;
    int32_t parametersOffset; // Il2CppParameterDefinition
    int32_t parametersCount;
    int32_t fieldsOffset; // Il2CppFieldDefinition
    int32_t fieldsCount;
    int32_t genericParametersOffset; // Il2CppGenericParameter
    int32_t genericParametersCount;
    int32_t genericParameterConstraintsOffset; // TypeIndex
    int32_t genericParameterConstraintsCount;
    int32_t genericContainersOffset; // Il2CppGenericContainer
    int32_t genericContainersCount;
    int32_t nestedTypesOffset; // TypeDefinitionIndex
    int32_t nestedTypesCount;
    int32_t interfacesOffset; // TypeIndex
    int32_t interfacesCount;
    int32_t vtableMethodsOffset; // EncodedMethodIndex
    int32_t vtableMethodsCount;
    int32_t interfaceOffsetsOffset; // Il2CppInterfaceOffsetPair
    int32_t interfaceOffsetsCount;
    int32_t typeDefinitionsOffset; // Il2CppTypeDefinition
    int32_t typeDefinitionsCount;

    int32_t imagesOffset; // Il2CppImageDefinition  偏移 168 (0xA8)
    int32_t imagesCount;		//偏移 172 (0xAC)
    int32_t assembliesOffset; // Il2CppAssemblyDefinition	偏移 176 (0xB0)
    int32_t assembliesCount;		//偏移 180 (0xB4)

    int32_t metadataUsageListsOffset; // Il2CppMetadataUsageList
    int32_t metadataUsageListsCount;
    int32_t metadataUsagePairsOffset; // Il2CppMetadataUsagePair
    int32_t metadataUsagePairsCount;
    int32_t fieldRefsOffset; // Il2CppFieldRef
    int32_t fieldRefsCount;
    int32_t referencedAssembliesOffset; // int32_t
    int32_t referencedAssembliesCount;
    int32_t attributesInfoOffset; // Il2CppCustomAttributeTypeRange
    int32_t attributesInfoCount;
    int32_t attributeTypesOffset; // TypeIndex
    int32_t attributeTypesCount;
    int32_t unresolvedVirtualCallParameterTypesOffset; // TypeIndex
    int32_t unresolvedVirtualCallParameterTypesCount;
    int32_t unresolvedVirtualCallParameterRangesOffset; // Il2CppRange
    int32_t unresolvedVirtualCallParameterRangesCount;
    int32_t windowsRuntimeTypeNamesOffset; // Il2CppWindowsRuntimeTypeNamePair
    int32_t windowsRuntimeTypeNamesSize;
    int32_t exportedTypeDefinitionsOffset; // TypeDefinitionIndex
    int32_t exportedTypeDefinitionsCount;
} Il2CppGlobalMetadataHeader;

imagesCount（Image 的总字节数）应该在偏移 172 的位置。

assembliesCount（Assembly 的总字节数）应该在偏移 180 的位置。

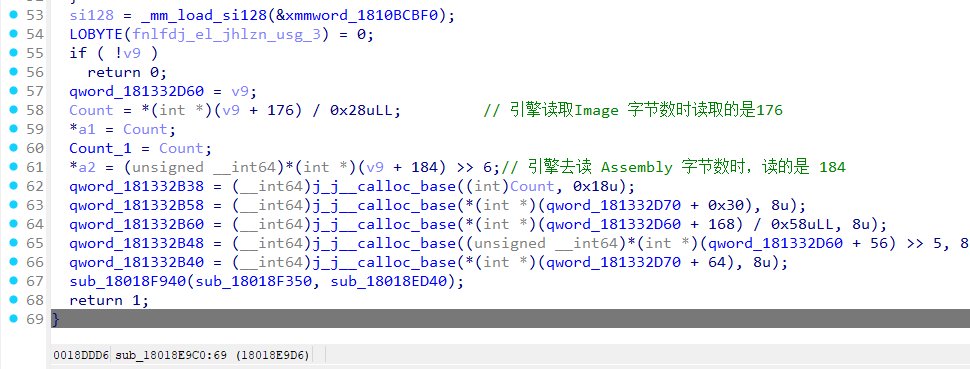

但是我们回归sub_18018E9C0函数，会看到引擎读取的都比标准的多4字节。

这个是个很重要的发现，为什么偏移要比标准的多4字节呢？结合gm.dat文件的16进制去看，会发现这里还有4个奇怪的字母YURO，其实就是因为这4字节，才导致了后面的读取要比标准的多4字节。

另外还要说明的是在标准的 Unity 引擎源码里，在拿到内存指针 v9 之后，必定会有这样一行代码： if ( *(int *)v9 != 0xFAB11BAF ) return 0;去检查前四个字节的。这里没有就需要注意了，在你解密后应该还得看看是否魔数正确，不正确的话还得修改。

直接在010里面修改就行

然后使用Il2CppDumper.exe工具去dump，这次就能成功了。

接着就是用ida打开GameAssembly.dll

然后选择 File -> Script file 去应用 ida_with_struct_py3.py文件，依次导入Il2CppDumper.exe工具dump的script.json和il2cpp.h文件。

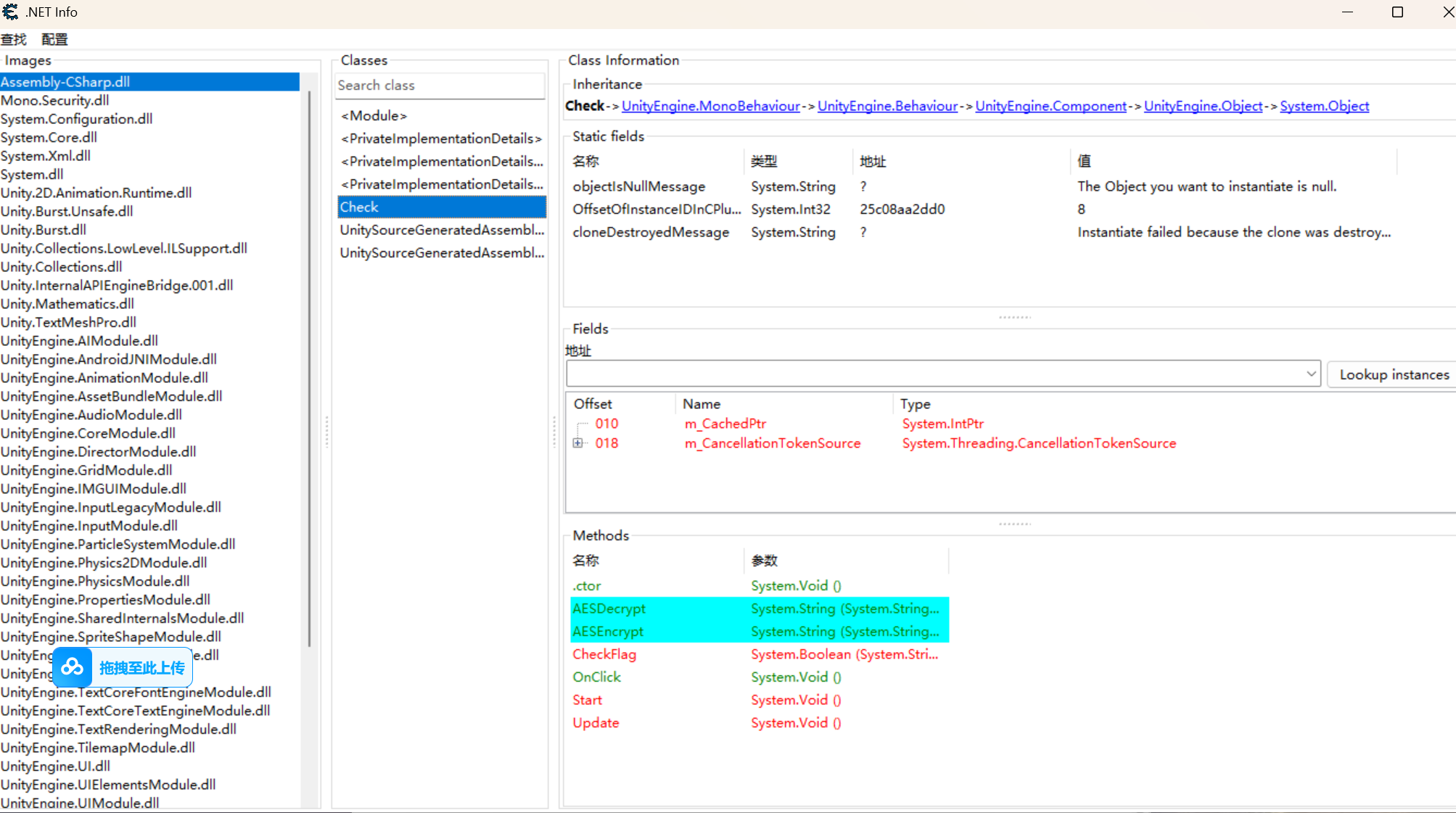

可以去用CE去定位关键的类和函数

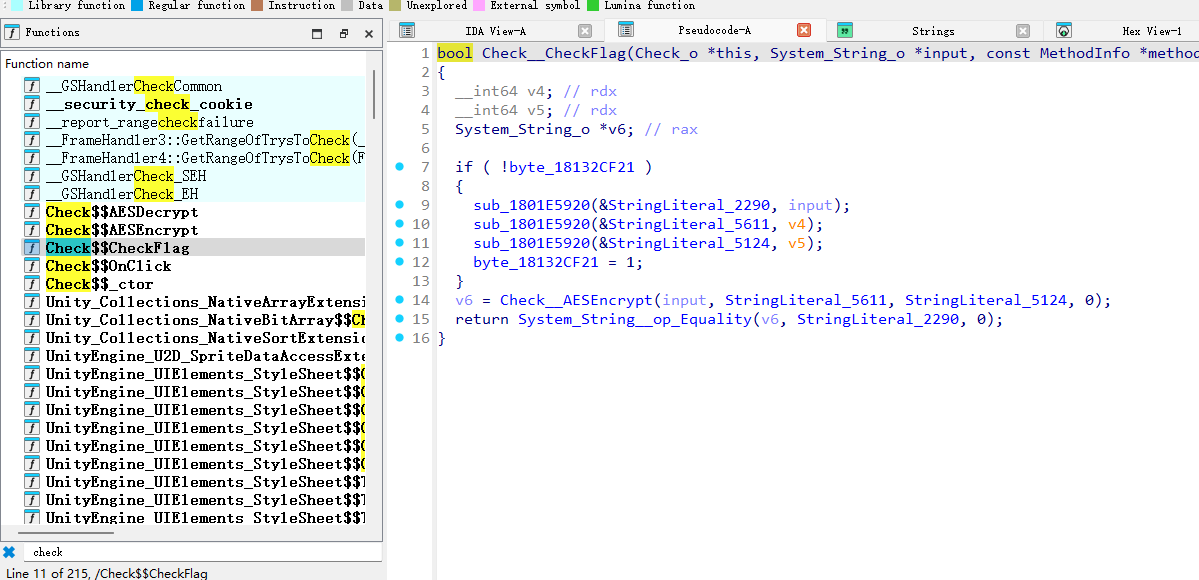

定位check类，可以看到check类下有很多关键方法名，AESEncrypt 和 CheckFlag 等。这样可以很快定位到ida里面的关键逻辑

跟进Check__AESEncrypt函数里面看看，这个是标准的AES-CBC加密

第一个参数是我们的flag，第二个参数是key，第三个参数是iv

System_String_o *Check__AESEncrypt(
        System_String_o *text,
        System_String_o *key,
        System_String_o *iv,
        const MethodInfo *method)
{
  __int64 v7; // rdx
  __int64 v8; // rdx
  __int64 v9; // rdx
  System_Security_Cryptography_RijndaelManaged_o *v10; // rbx
  System_Text_Encoding_o *UTF8; // rax
  __int64 sourceArray; // rsi
  __int64 destinationArray; // rax
  __int64 destinationArray_1; // rdi
  int32_t length; // r8d
  System_Text_Encoding_o *UTF8_1; // rax
  __int64 v17; // rax
  __int64 v18; // rbx
  System_Text_Encoding_o *UTF8_2; // rax
  __int64 v20; // rax
  System_Byte_array *inArray; // rbx
  __int64 v23; // [rsp+20h] [rbp-18h]

  if ( !byte_18132CF22 )
  {
    sub_1801E5920((__int64)&byte___TypeInfo, (__int64)key);
    sub_1801E5920((__int64)&System_Convert_TypeInfo, v7);
    sub_1801E5920((__int64)&System_Security_Cryptography_ICryptoTransform_TypeInfo, v8);
    sub_1801E5920((__int64)&System_Security_Cryptography_RijndaelManaged_TypeInfo, v9);
    byte_18132CF22 = 1;
  }
  v10 = (System_Security_Cryptography_RijndaelManaged_o *)sub_1801E5B00(System_Security_Cryptography_RijndaelManaged_TypeInfo);
  System_Security_Cryptography_RijndaelManaged___ctor(v10, 0);
  if ( !v10 )
    goto LABEL_16;
  ((void (__fastcall *)(System_Security_Cryptography_RijndaelManaged_o *, __int64, const MethodInfo *))v10->klass->vtable._13_set_Mode.methodPtr)(
    v10,
    1,
    v10->klass->vtable._13_set_Mode.method);
  ((void (__fastcall *)(System_Security_Cryptography_RijndaelManaged_o *, __int64, const MethodInfo *))v10->klass->vtable._14_set_Padding.methodPtr)(
    v10,
    2,
    v10->klass->vtable._14_set_Padding.method);
  ((void (__fastcall *)(System_Security_Cryptography_RijndaelManaged_o *, __int64, const MethodInfo *))v10->klass->vtable._12_set_KeySize.methodPtr)(
    v10,
    128,
    v10->klass->vtable._12_set_KeySize.method);
  ((void (__fastcall *)(System_Security_Cryptography_RijndaelManaged_o *, __int64, const MethodInfo *))v10->klass->vtable._6_set_BlockSize.methodPtr)(
    v10,
    128,
    v10->klass->vtable._6_set_BlockSize.method);
  UTF8 = System_Text_Encoding__get_UTF8(0);
  if ( !UTF8 )
    goto LABEL_16;
  sourceArray = ((__int64 (__fastcall *)(System_Text_Encoding_o *, System_String_o *, const MethodInfo *))UTF8->klass->vtable._16_GetBytes.methodPtr)(
                  UTF8,
                  key,
                  UTF8->klass->vtable._16_GetBytes.method);
  destinationArray = sub_1801E4E50(byte___TypeInfo, 16);
  destinationArray_1 = destinationArray;
  if ( !sourceArray || !destinationArray )
    goto LABEL_16;
  length = *(_DWORD *)(sourceArray + 24);
  if ( length > *(_DWORD *)(destinationArray + 24) )
    length = *(_DWORD *)(destinationArray + 24);
  System_Array__Copy_6451540736((System_Array_o *)sourceArray, (System_Array_o *)destinationArray, length, 0);
  ((void (__fastcall *)(System_Security_Cryptography_RijndaelManaged_o *, __int64, const MethodInfo *))v10->klass->vtable._10_set_Key.methodPtr)(
    v10,
    destinationArray_1,
    v10->klass->vtable._10_set_Key.method);
  UTF8_1 = System_Text_Encoding__get_UTF8(0);
  if ( !UTF8_1
    || (v17 = ((__int64 (__fastcall *)(System_Text_Encoding_o *, System_String_o *, const MethodInfo *))UTF8_1->klass->vtable._16_GetBytes.methodPtr)(
                UTF8_1,
                iv,
                UTF8_1->klass->vtable._16_GetBytes.method),
        ((void (__fastcall *)(System_Security_Cryptography_RijndaelManaged_o *, __int64, const MethodInfo *))v10->klass->vtable._8_set_IV.methodPtr)(
          v10,
          v17,
          v10->klass->vtable._8_set_IV.method),
        v18 = ((__int64 (__fastcall *)(System_Security_Cryptography_RijndaelManaged_o *, const MethodInfo *))v10->klass->vtable._15_CreateEncryptor.methodPtr)(
                v10,
                v10->klass->vtable._15_CreateEncryptor.method),
        (UTF8_2 = System_Text_Encoding__get_UTF8(0)) == 0)
    || (v20 = ((__int64 (__fastcall *)(System_Text_Encoding_o *, System_String_o *, const MethodInfo *))UTF8_2->klass->vtable._16_GetBytes.methodPtr)(
                UTF8_2,
                text,
                UTF8_2->klass->vtable._16_GetBytes.method)) == 0
    || !v18 )
  {
LABEL_16:
    sub_1801E5B50();
  }
  LODWORD(v23) = 0;
  inArray = (System_Byte_array *)sub_180002940(
                                   0,
                                   System_Security_Cryptography_ICryptoTransform_TypeInfo,
                                   v18,
                                   v20,
                                   v23,
                                   *(_DWORD *)(v20 + 24));
  if ( !System_Convert_TypeInfo->_2.cctor_finished )
    il2cpp_runtime_class_init();
  return System_Convert__ToBase64String(inArray, 0);
}

但是能够注意到的是最后返回的密文还经过了base64加密

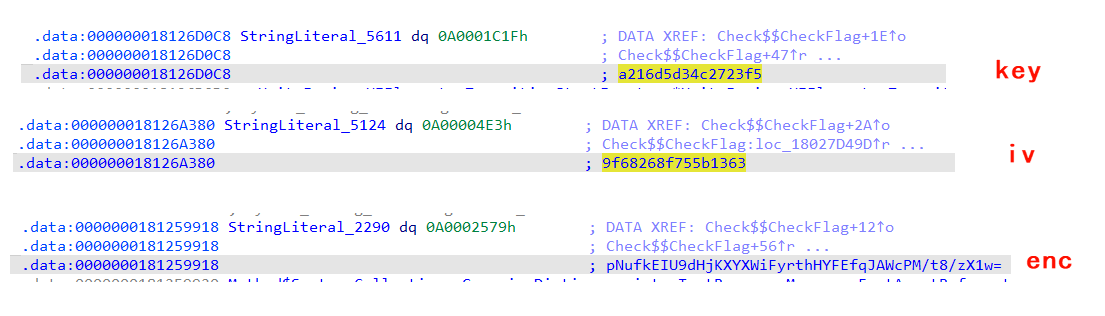

下面就去找密文，key和iv的数据

其实这些字符串都被放在了global-metadata.dat文件里面，引擎在运行游戏的时候是通过这些偏移量（offset）和数量（count）来找到它们的。

在脚本恢复符号的时候密文这些字符串就写在了注释里。

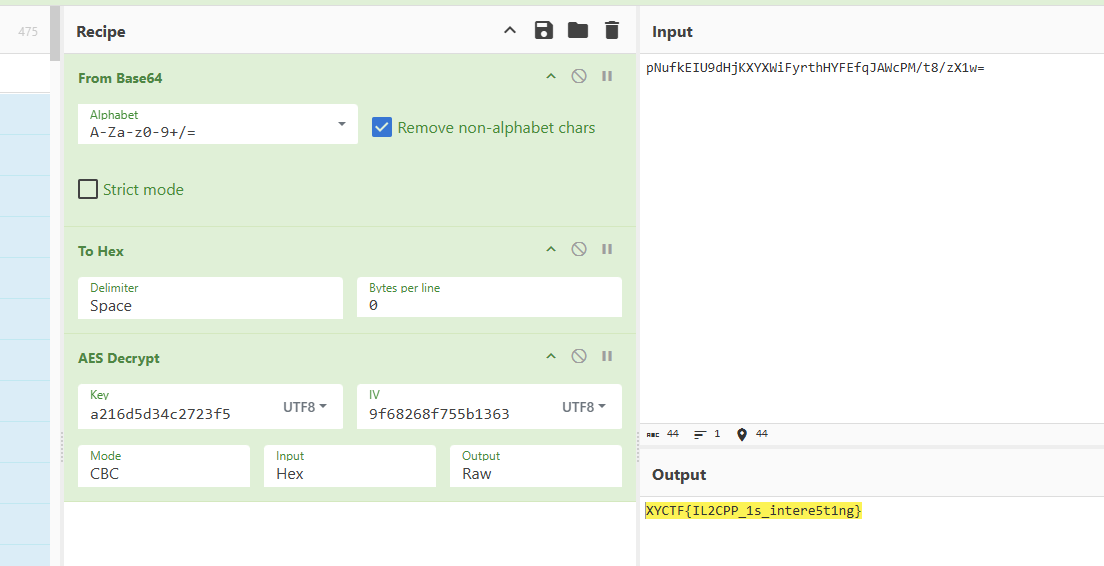

直接厨子一把唆

后记

这道题还有其他的解法，看了出题人的文章才知道可以直接使用 frida-il2cpp-bridge

这个工具是可在运行时 dump、trace、hook IL2CPP 应用，而且不依赖 global-metadata.dat 文件。

原理：frida把脚本注入到目标进程（此时明文信息都已经在运行时内存里面了），这个脚本就直接去调用IL2CPP runtime API（IL2CPP 运行时本身提供了一批 native API，用来取domain/assembly/image，枚举类，字段，方法，取字符串内容等），然后把这些native API 包成 JS对象模型。

你的 JS 脚本
   ↓
Frida 注入到目标进程
   ↓
frida-il2cpp-bridge 等待 IL2CPP 初始化完成
   ↓
把当前线程 attach 到 IL2CPP
   ↓
调用 IL2CPP runtime API
   ↓
把 native 层的 domain / assembly / class / method 封装成 JS 对象
   ↓
你就能直接枚举、hook、改返回值、调方法

不过我在尝试的时候发现失败了，去翻了别的师傅的博客，里面也出现过一样的问题，可能是windows11的问题，那位师傅使用win10的虚拟机成功了，但是我没再尝试了，下次有时间再看看。

出题人的出题思路与题解：https://bbs.kanxue.com/thread-281560-1.htm
